Description

Overview…

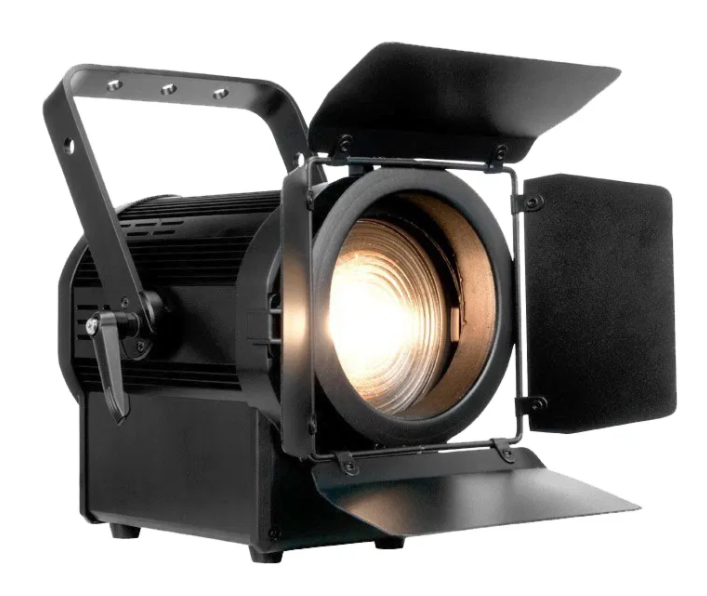

Part of the Encore stage lighting series, the Encore FR150Z lighting fixture is equipped with an 8-inch Fresnel lens and powered by a 130W LED engine. It produces a white wide, soft-edged beam for stage and theatre use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual know to change the beam angle from 15 to 38 degrees.

The Encore FR150Z has a 4-button LCD operational menu, 3-pin and 5-pin DMX In/Out and Locking Power In/Out to daisy chain the power from one fixture to another.

Key Features…

–  Light Source: 1 WW COB-LED
– Individual LED wattage : 130W
– Average LED lifetime : approximately 50,000 hrs.
– Colour Temperature: 3000K
– CRI: 95.9
–  Adjustable Beam Angle: 15-38 degrees
– 8-inch/200mm Fresnel Lens

Tech Spec…

Control

– 2 operational Modes : Manual WW Dimmer Mode and DMX Control
– 6 DMX Modes: 1, 2, 2-2, 3, 2-3 & 4-channel
– RDM compatible
– 16bit Electronic Dimming: 0 – 100%
– 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
– Adjustable Dim Curves (Linear, Square, Inv. Square and S-Curve)
– Adjustable Fanmodes (Auto, Low, High)
– LED pulse and strobe effect

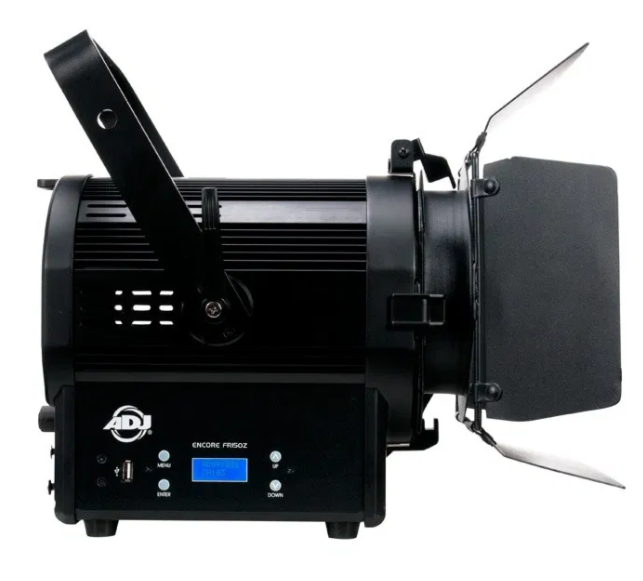

– 4-button, DMX digital display on rear panel

Colours

– Warm White 3000K

Construction

– Robust extruded aluminium housing
– Manual Zoom Knob
– Barndoors included

Electrical

– Multivoltage 100-240V 50/60Hz
– Power Consumption: 150W

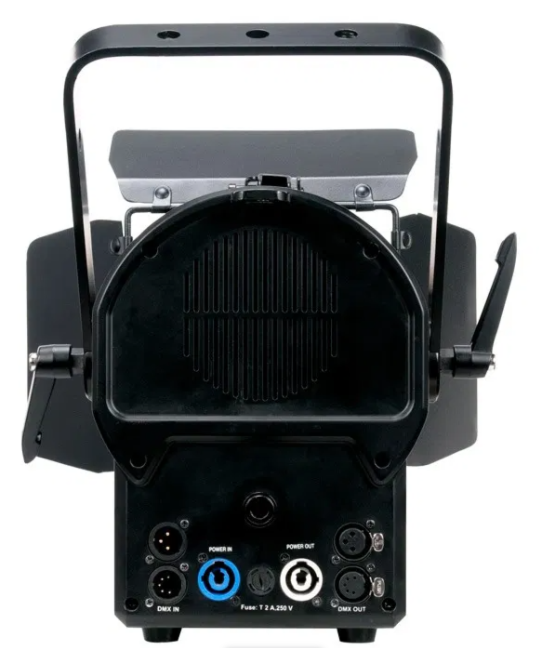

Connections

– 3 & 5-pin Locking DMX In/Out connections
– Locking Power In/Out connections
– USB port for Firmware Update

Dimensions & Weight

– Dimensions (LxWxH):
Without Barndoors: 276 x 298.62 x 416mm
With Barndoors: 422.23 x 298.62 x 416mm

– Weight:
Without Barndoors: 6,8 kg.
With Barndoors: 7,4 kg
