Description

Overview…

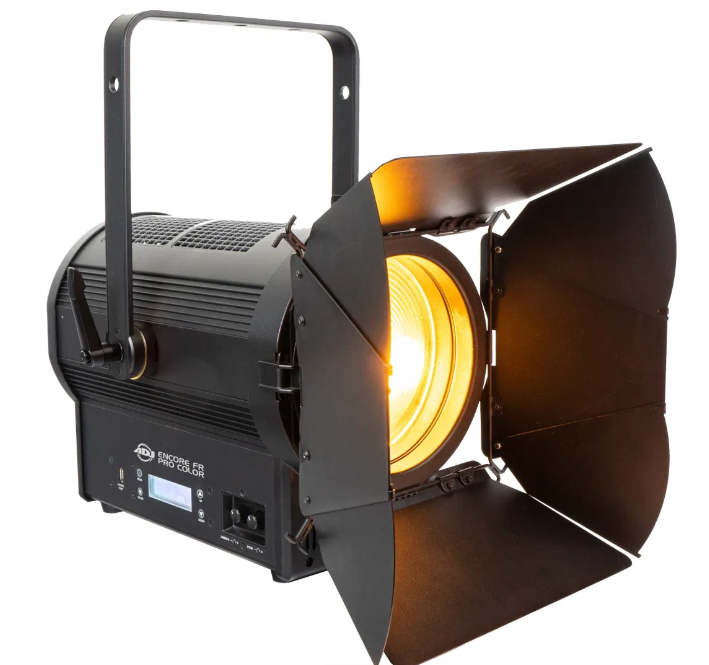

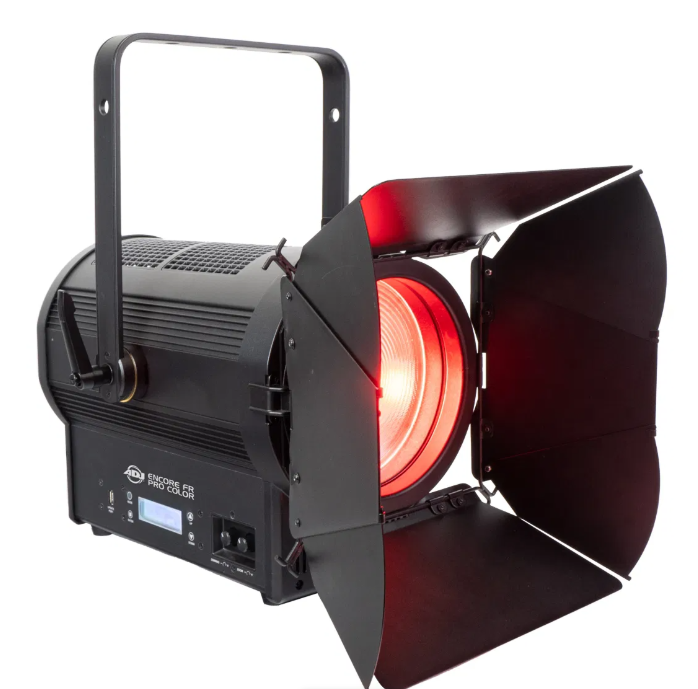

The ADJ Lighting Encore FR Pro Colour is a professional grade Fresnel fixture with a 7-inch lens designed for key light, as a fill light and as a back light. It offers a full spectrum of colours with (virtual) CMY Colour Mixing DMX modes, and tunable white colour temperatures from 2400K to 8500K. It’s powered by a 400W 6-IN-1 LED engine with red, green, blue, amber, lime and cyan LEDs.

The Encore FR Pro Colour has a motorized zoom range of 9~37°, a high CRI rating with an output of more than 9,000 Lumens. There are an abundant of on-board features such as 5 DMX control modes, 6 Dim Curves, preset colour macros, and adjustable refresh rates.

The fixture has DMX-512 and RDM protocols, a USB service port, a 4-Button control panel LCD menu display, 3 & 5-pin DMX In/Out sockets and locking power In/Out to daisy chain power from one fixture to another.

A rotating 8-leaf barn door, gel frame and power cord are included with the fixture.

Key Features…

– 1X400W 6-IN-1 LED (Red, Green, Blue, Amber, Lime and Cyan)
– 50,000 Hour Average LED Life
– Motorized zoom
– Electronic Dimmer and Strobe (1-20Hz)
– Variable 16-bit Dimming Modes and Curves
– Virtual CMY Colour Mixing DMX Control Modes

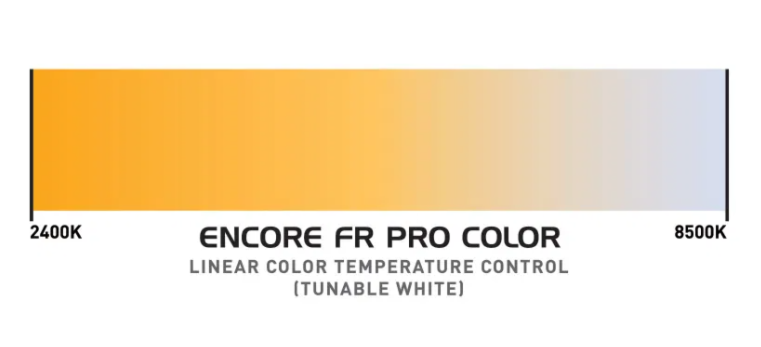

– Tuneable White Colour Temperature from 2400K to 8500K
– 62 Preset White Colour Temp Macros (2400K to 8500K)
– Virtual Colour Swatch Book with 60 preset colours
– 64 Preset RGBA Colour macro’s

Tech Spec…

– Dimmer and Zoom Rotary Dials
– 5 DMX Channel Modes (14 / 17 / 19 / 13 CMY / 19 CMY)
– 4 Button Control Panel LCD Menu Display
– Adjustable Refresh Rate (68 presets from 900 – 25,000Hz)
– 6 Preset Dim Modes (Standard, Stage, TV, Architectural, Theatre and Stage 2)
– Dim Speed Options (0.1s to 10s)
– 4 Dim Curves (Square, Linear, Inv. Squa and S. Curve
– RDM (Remote Device Management)
– 3/5pin DMX and IP65 Locking Power Cable In/Out
– Locking Power Input and Output
– USB Service Port

– Length: 414.5mm
– Width: 360.1mm
– Vertical Height: 490mm
– Weight: 9.45kg

– AC 100-240V – 47/63Hz
– 450W Max Power Consumption
– -15°C to 45°C
– Power Linking: 5Pcs @ 240V

– Gel Frame
– Power Cable
– 8-blade Barndoor
