Description
– Inbuilt amplifier circuit
– Power from 12Vdc 2A (not supplied)
– Power and line level input on a single cable
Overview…

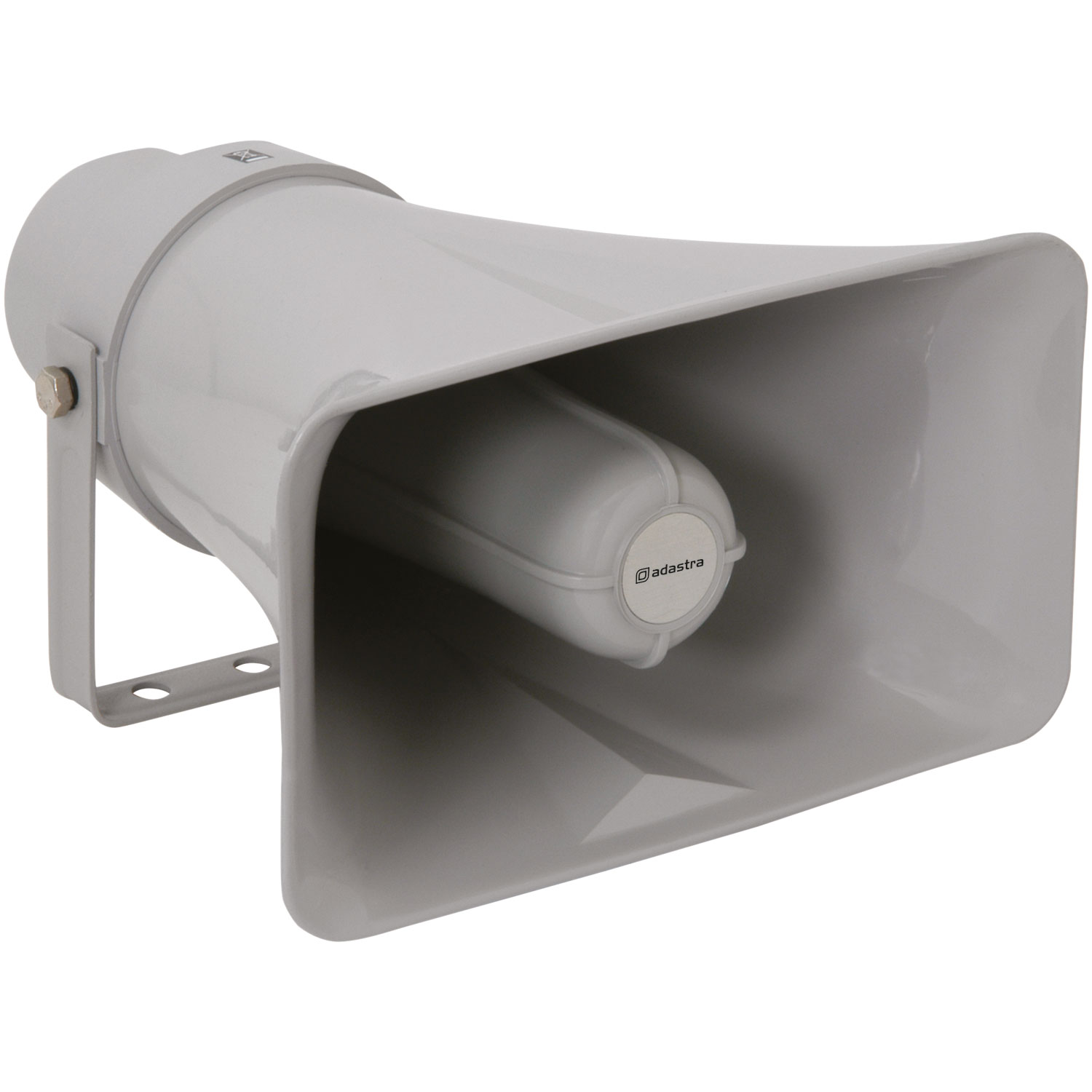

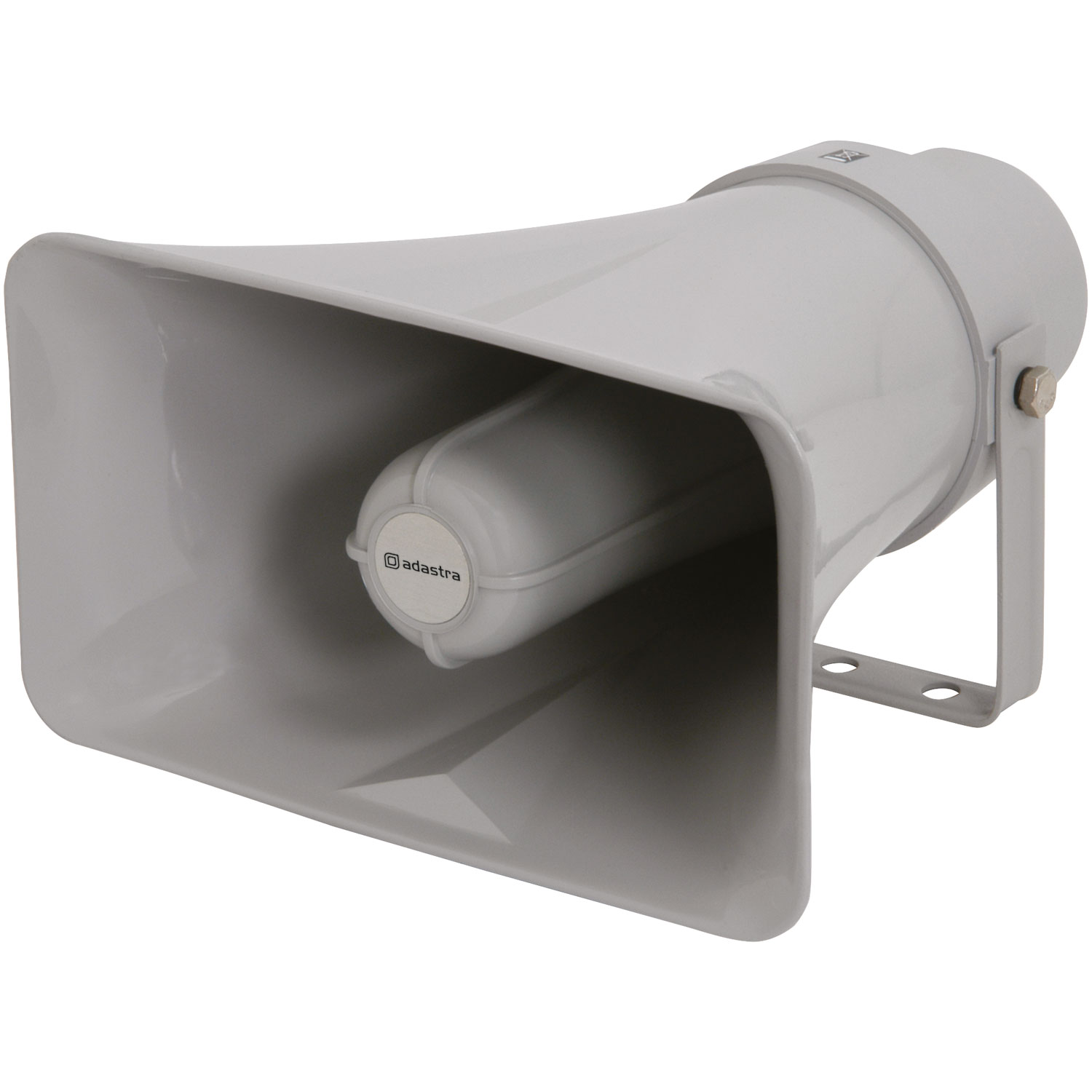

Active horn speaker with built-in amplifier for indoor or outdoor use. Constructed from high impact ABS material with IP66 protection for reliable operation in all environments. Fitted with an angle-adjustable bracket for convenient installation onto a wall or ceiling. Low voltage power and line level audio are connected via a single 4-core cable for simplified cable feed and connection. The horn should be powered from a filtered, noise-free 12Vdc power supply capable of 2.1A or 25W. Designed for voice alerts in CCTV and security systems or as a self-contained add-on for existing public address installations.
Key Features…
– Inbuilt amplifier circuit
– Power from 12Vdc 2A (not supplied)
– Power and line level input on a single cable
– IP66 weatherproof
– Recommended power supply: 660.451UK
Tech Spec…
– Power supply: 12Vdc, 2A (not included)
– Construction: ABS moulded body, metal bracket
– Connection: Hard-wired cable (power + line in)
– Output power max.: 25W
– IP rating: IP66
– Dimensions: 295 x 255 x 150mm
– Weight: 2.05kg
