Description

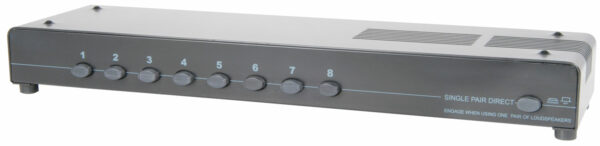

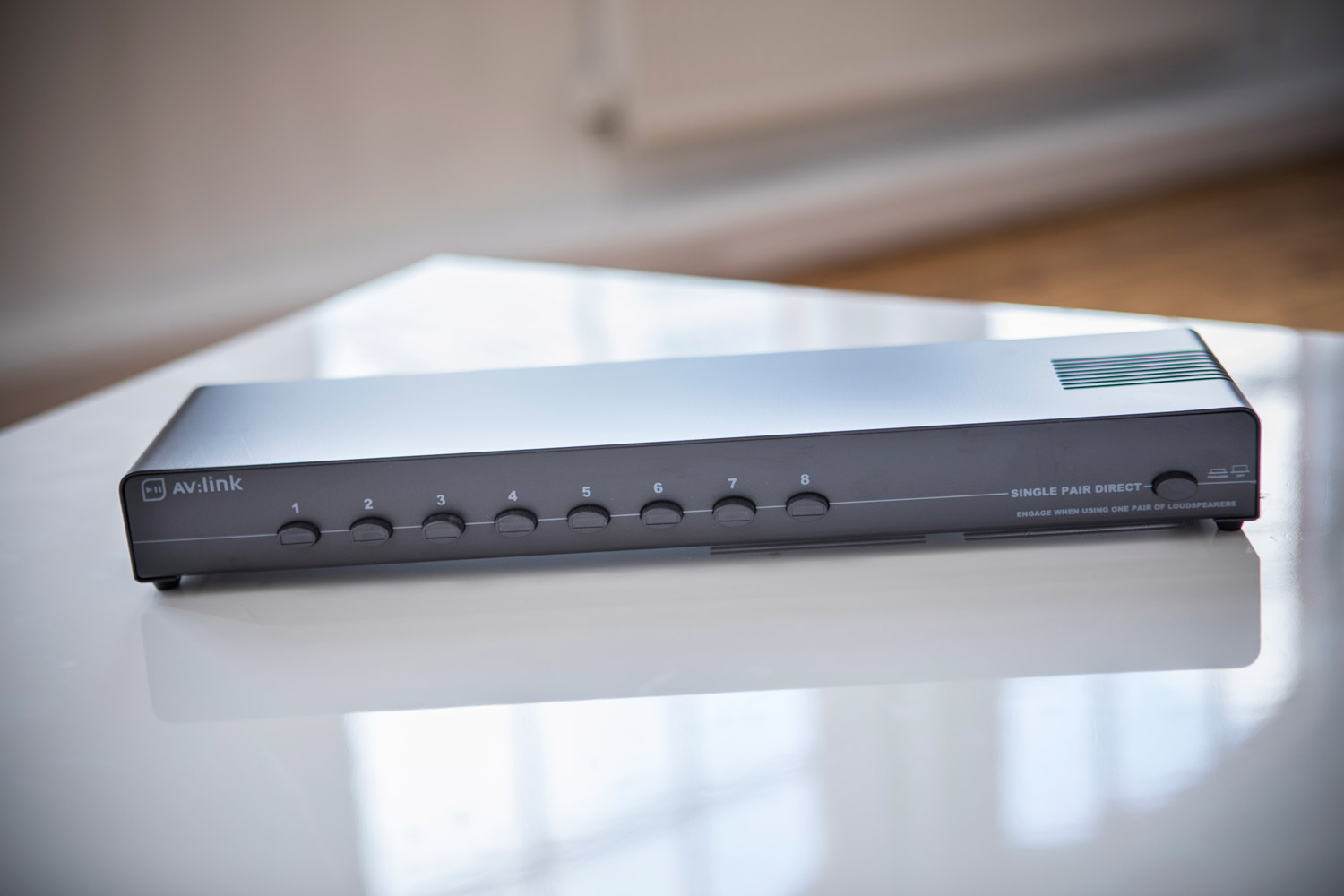

This switcher unit allows the distribution of a stereo amplifier. Simply connect the output of an amplifier to the box, this output can then be distributed to up to eight different stereo speaker sets in eight different locations, each speaker set can be individually activated via the push buttons on the front of the box. Ideally suited for buildings where an independent sound control is required for different rooms or zones.
Features
Enables eight pairs of speakers to be connected to a single stereo amplifier
Heavy duty push-buttons
Built-in overload protection
Spring clip terminals
Designed for 4-16 ohms speakers
Technical Specifications
Wiring gauge[tab]14 to 22 gauge
Input[tab]1 x stereo
Output[tab]8 x stereo
Power per channel[tab]100W max.
Dimensions[tab]432 x 125 x 55mm
Weight[tab]2.08kg
Weight
2.1000kg
Dimensions
432 x 125 x 55mm
