Description

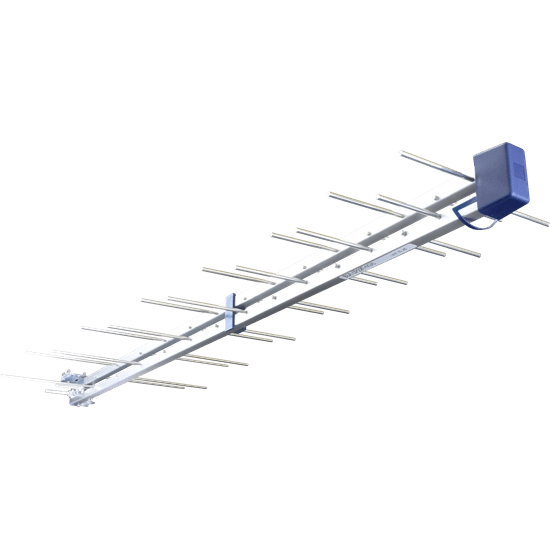

Compact, log-periodic directional TV aerials ideal for lofts or tight spaces. Pre-assembled with an F-type connector in a weather-resistant housing, allowing easy setup and quick adjustment for horizontal or vertical polarity without disassembly. Supplied with a universal mounting bracket and designed for durability. Group T offers a flat response across channels 21–37 and is 4G/LTE-ready without requiring additional filters.
Features
Compact, log‐periodic, directional TV aerials that are ideal for lofts or areas with limited space.
Pre‐assembled with ‘F’ female connector for coaxial cable connection
Moulded F-connector in weather-resistant, rubber housing
F-Connector twists into position for H or V polarity with no need for any disassembly
Universal bracket for installation, suitable for vertical or horizontal polarisation
Group T has a very flat frequency response only (21‐37 Ch.)
Highly durable
Group T aerials are 4G/LTE ready digital aerial specially developed to reduce bandwidth without
using LTE filters.
Technical Specifications
Elements[tab]28
Channels[tab]21-60 (wideband)
Frequency[tab]470~606MHz
Gain[tab]11.2 dBi
Front to back ratio[tab]>22dB
Assembled length[tab]1095mm
Weight
0.6500kg
