Description

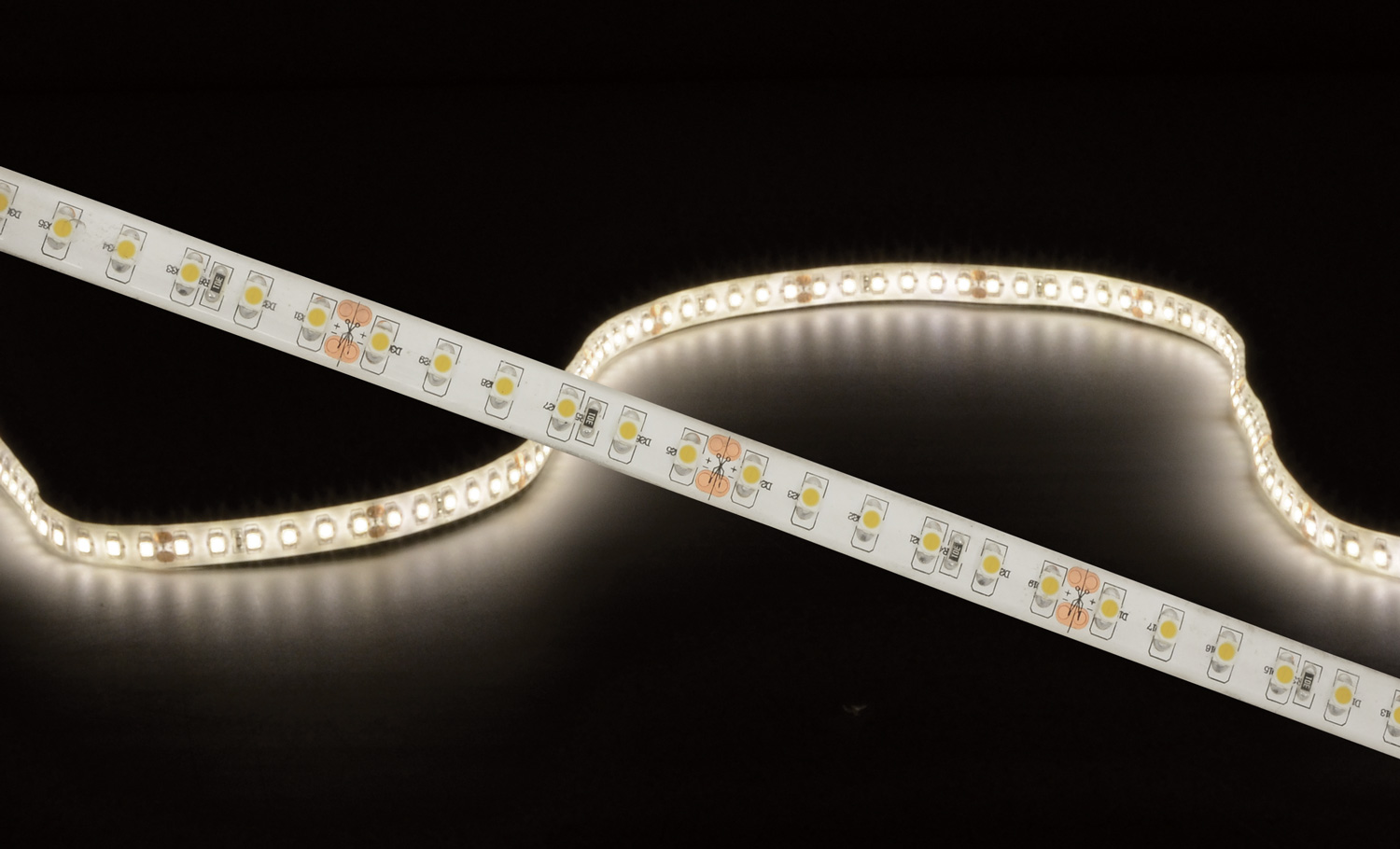

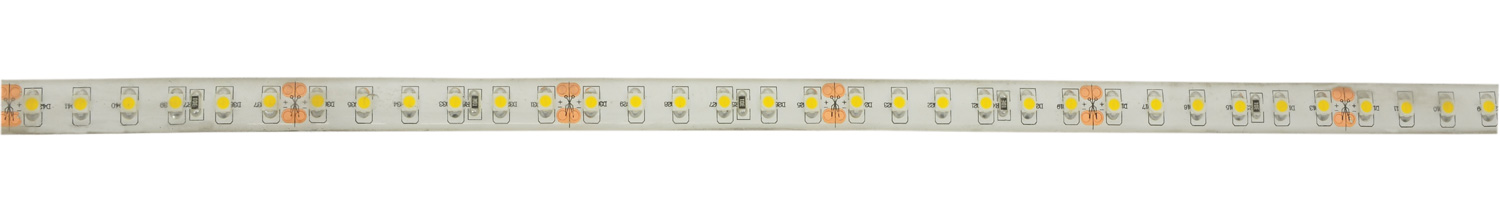

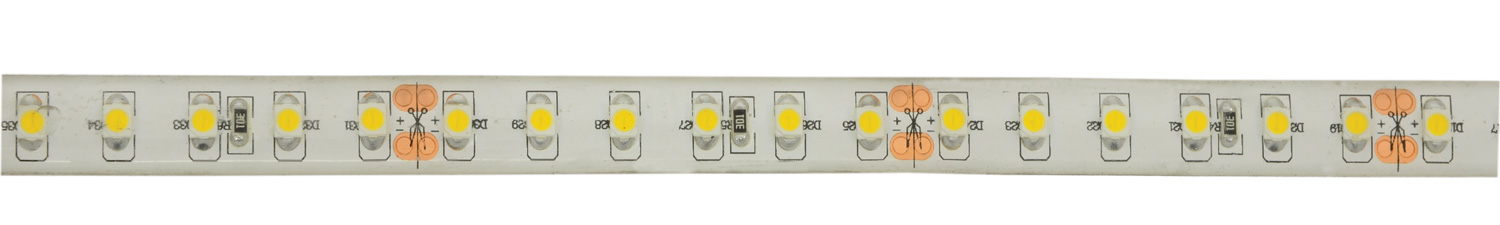

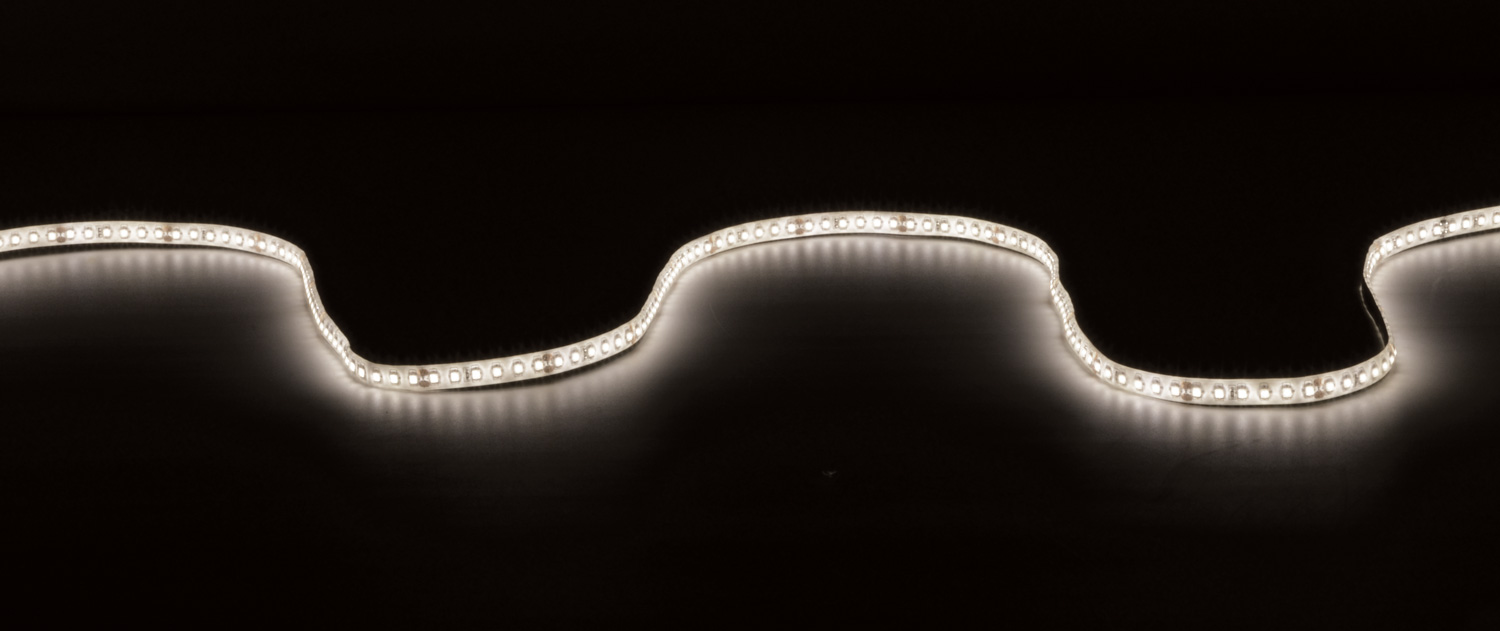

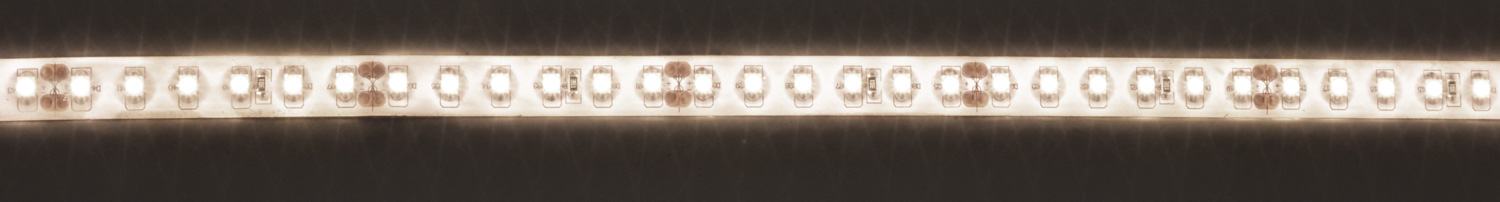

24V LED tape with high luminous flux output. 120 LEDs per metre combine to give exceptional light output with narrow spacing for even light distribution. Epoxy coated for water resistant protection and self adhesive backing for easy installation. Where standard LED tapes may not be powerful enough, these high output versions offer sufficient illumination for cabinets, architectural detail and signage.
Features
IP65 epoxy coated
Self-adhesive backing for easy installation
High luminous flux output
120 ultra bright LEDs per metre
Can be cut to desired length
Technical Specifications
Voltage[tab]24Vdc
Number of LEDs[tab]120/m
Beam angle[tab]140°
Cut intervals[tab]5cm
Reel length[tab]5m
LED : type[tab]Epistar™ SMD3528
LED : spacing[tab]8mm
IP rating[tab]IP65
Current[tab]400mA per metre
Power consumption per metre[tab]9.6W
Cross-section[tab]10.3 x 2.55mm
Weight[tab]210g
Light intensity per LED[tab]2400mcd
Luminous flux (Lumens per metre)[tab]720lm/m
Weight
0.2100kg
Dimensions
280 x 230 x 20mm
