19″ Rack Cabinets

£249.00 Ex VAT: £207.50

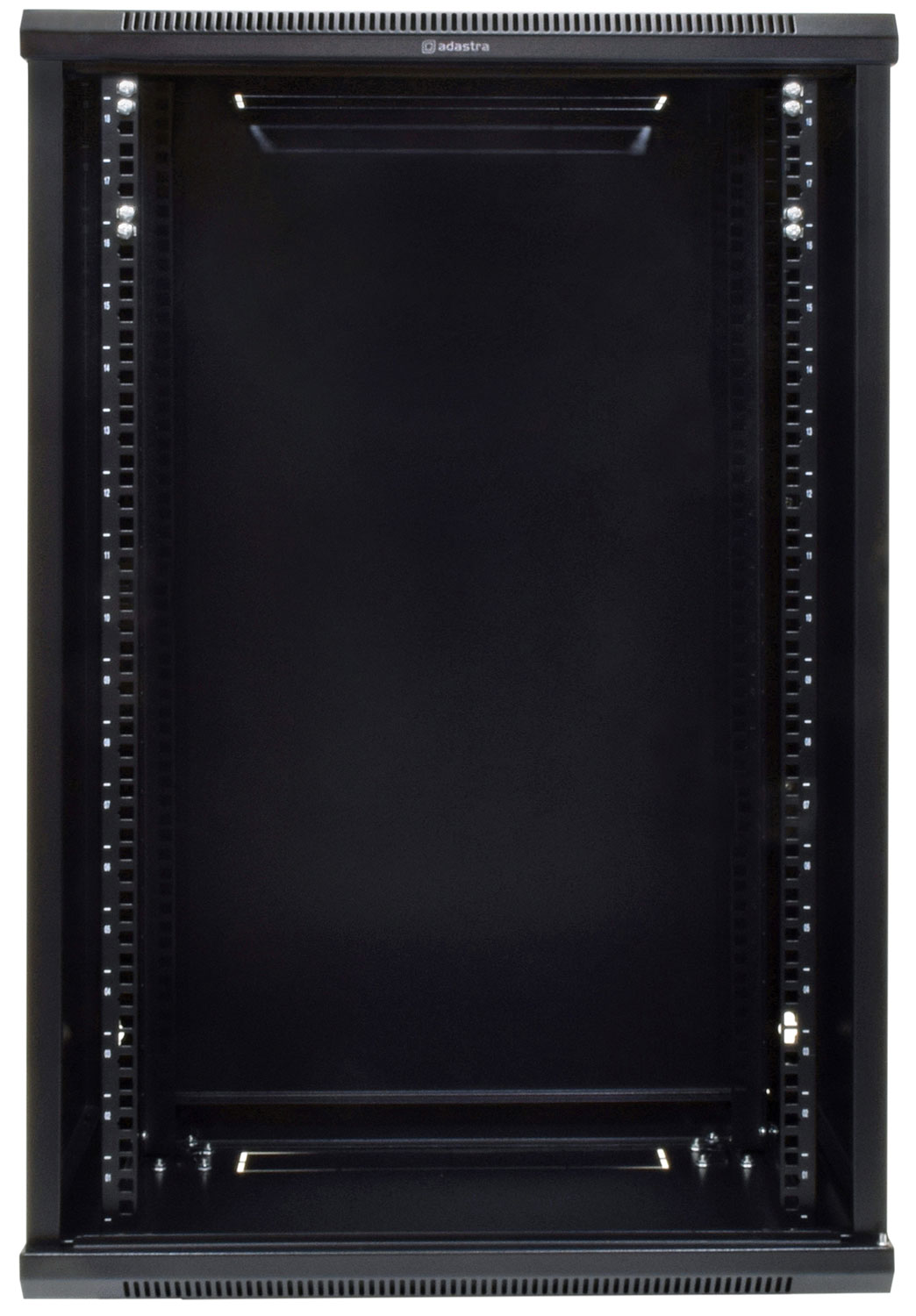

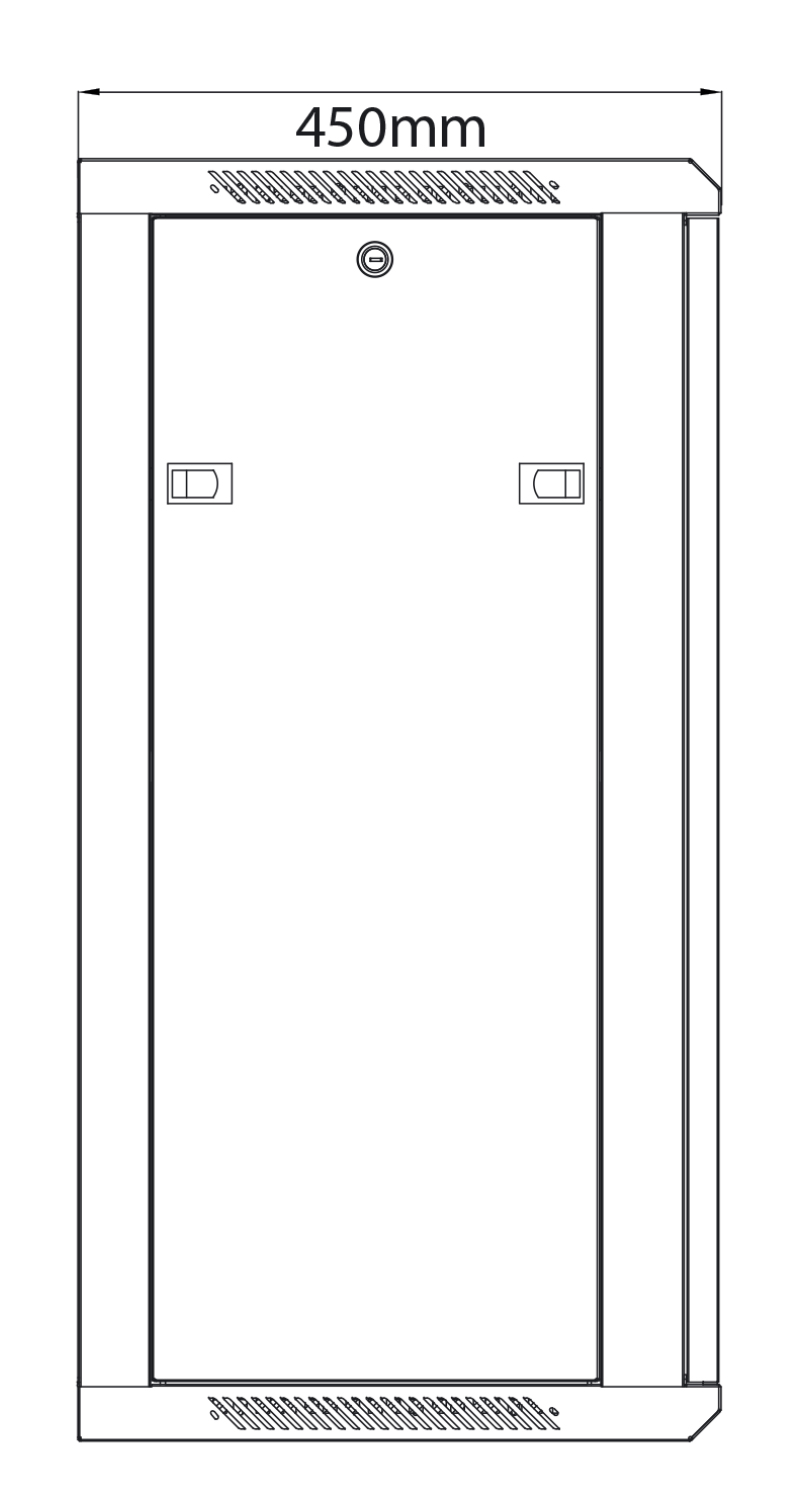

Rack Cabinet 18U x 450mm Deep

In stock

SKU: 953.518UK Categories: ,

Description

Cabinets for 19″ rack-mount equipment with removable side panels and lockable front door. Constructed from cold-rolled steel with folded edges for strength and stability. Front and rear rack strip is supplied and mounted to rails inside the cabinet, enabling the mounting depth to be adjusted to accommodate equipment with overhanging fittings or to support the rear of heavy units. The top panel is vented for cooling and has a cut-out for mounting a cooling fan if required. The front door is removable and has a pane of 5mm tempered glass flanked by folded steel edge panels which can be mounted to open to either the left or right. The rear panel has fixing apertures for wall mounting or alternatively, the cabinet can be free-standing. Superbly designed, secure containment for professional rack installations.

Features

Easy to assemble with adjustable front & rear rack strips
Durable epoxy powder coated finish
Supplied with glass door, lock and 2 keys
Clip-in side panels for easy access
Wall mountable or free-standing
Top and bottom knock-outs for cable feeds
Available in 2 depths and various rack heights

Technical Specifications

Material[tab]1.2mm cold rolled steel & 5mm tempered glass
Finish[tab]Epoxy powder coated RAL9004
Maximum load[tab]100kg static (total)
Standard[tab]ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI compliant
Width[tab]600mm

Weight

32.0000kg

Dimensions

635 x 925 x 245mm

Additional information

Weight 32.0000 kg
